car scanner obd2 diagnostic read erase faults
car scanner obd2 diagnostic read erase faults
Description
Feature:
Diagnostic scan tool designed with 1.8in Color screen display, with CE FCC ROHS UKCA certification, convenient and dependable to use.
Function: Car scanner tool has multifunctions, quickly read car engine faults, clear the engine malfunction light, view Freeze Frame Data and I/M ready state, etc.
Support 10 Languages: OBD2 scanner supports multiple languages
Communication Method: Support SAE J1850 PWM (41.6Kbaud); SAE J1850 VPW (10.4Kbaud); ISO9141?2 (5 baud init, 10.4Kbaud); ISO14230?4 KWP (5 baud init, 10.4 Kbaud), etc.
Premium Material: Engine fault code reader is made of premium ABS plastic, impact resistant, not easy to break, lightweight, easy to carry.
Specification:
Item Type: OBD2 Engine Scanner
Material: ABS
Reading Codes: Show the detailed description of the Diagnostic Trouble Code (DTCs)
Erasing Codes & Reset: Turns off Check Engine Light (MIL), clears codes and resets monitors
Data Stream: Reads and displays live ECU/PCM data stream, plotting functions graphically and stores freeze frame data
I/M Readiness Status: Shows whether the various emissions-related systems on the vehicle are operating properly and are ready for inspection and maintenance testing
View Freeze Frame Data: Check the certain vehicle conditions which are recorded by the on-board computer at the time the emission-related fault occurs
Read Vehicle Information: Display the information such as VIN (Vehicle Identification Number), CID (Calibration ID) and CVN (Calibration verification number), etc.
RealTime Curve
O2 Sensor
EVAP
Battery voltage reading
Fault code query
Communication Method:
1. SAE J1850 PWM (41.6Kbaud)
2. SAE J1850 VPW (10.4Kbaud)
3. ISO9141-2 (5 baud init, 10.4Kbaud)
4. ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
5. ISO14230-4 KWP (fast init, 10.4 Kbaud)
6. ISO15765-4 CAN (11bit ID, 500 Kbaud)
7. ISO15765-4 CAN (29bit ID, 500 Kbaud)
8. ISO15765-4 CAN (11bit ID, 250 Kbaud)
9. ISO15765-4 CAN (29bit ID, 250 Kbaud)
Please note that this tool is only for Engine Management. It can not check other systems like ABS, Airbags etc.
Please purchase if you know it is compatible with your vehicle and it is only for Engine Management as stated.
Connect the tool:
Turn the ignition switch to the on position. Do not start the engine.
Plug the OBD connector into the Data Link Connector.
The tool will attempt to identify the vehicle. If successful, the vehicle identified is displayed. if the vehicle cannot be identified, menus will be shown for you to select the vehicle manually.
What's in the box

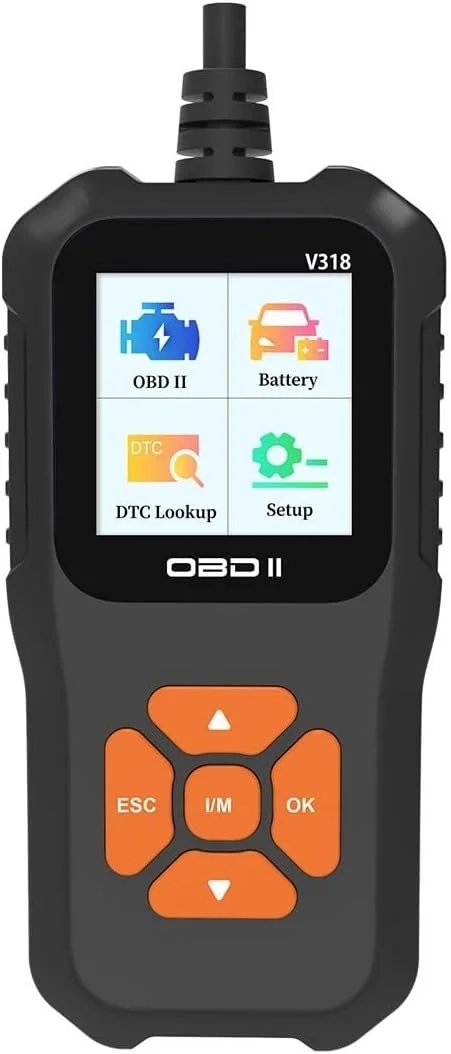

1 x V318 Code Reader
1 x User Manual
